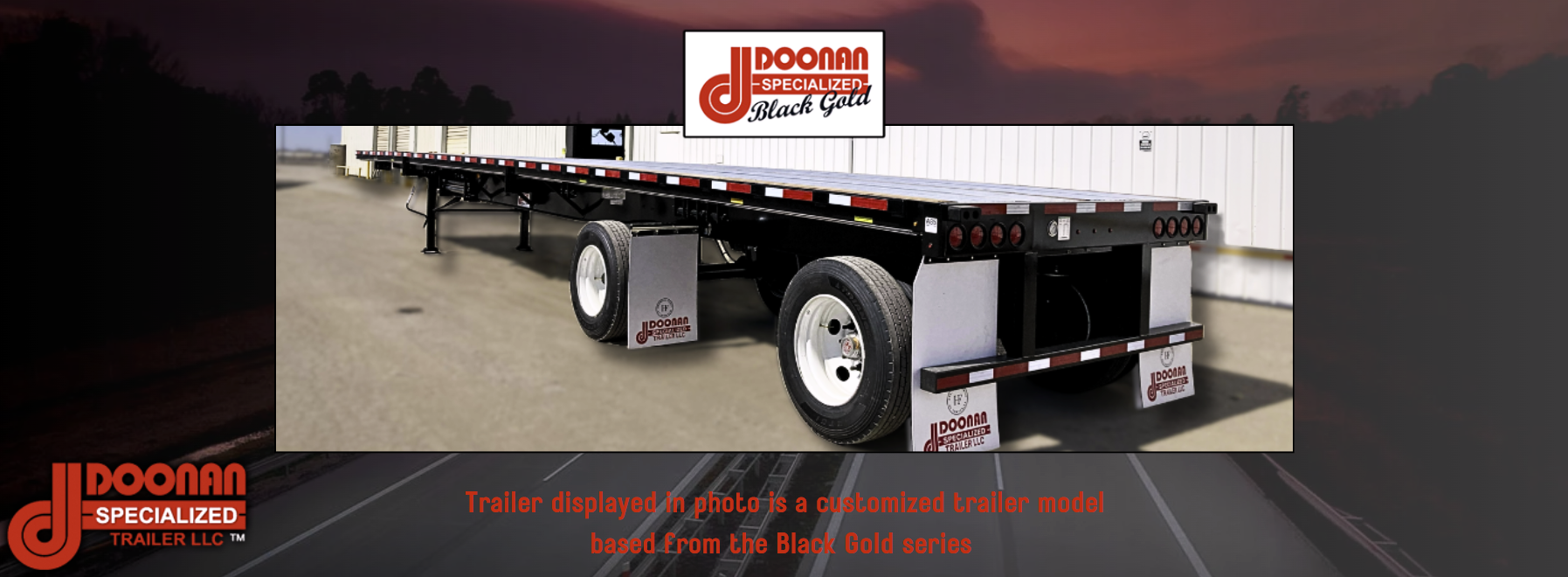

Doonan Black Gold™ Standard Flatbed Specifications


 Specifications
S
T
R
U
C
T
U
R
E

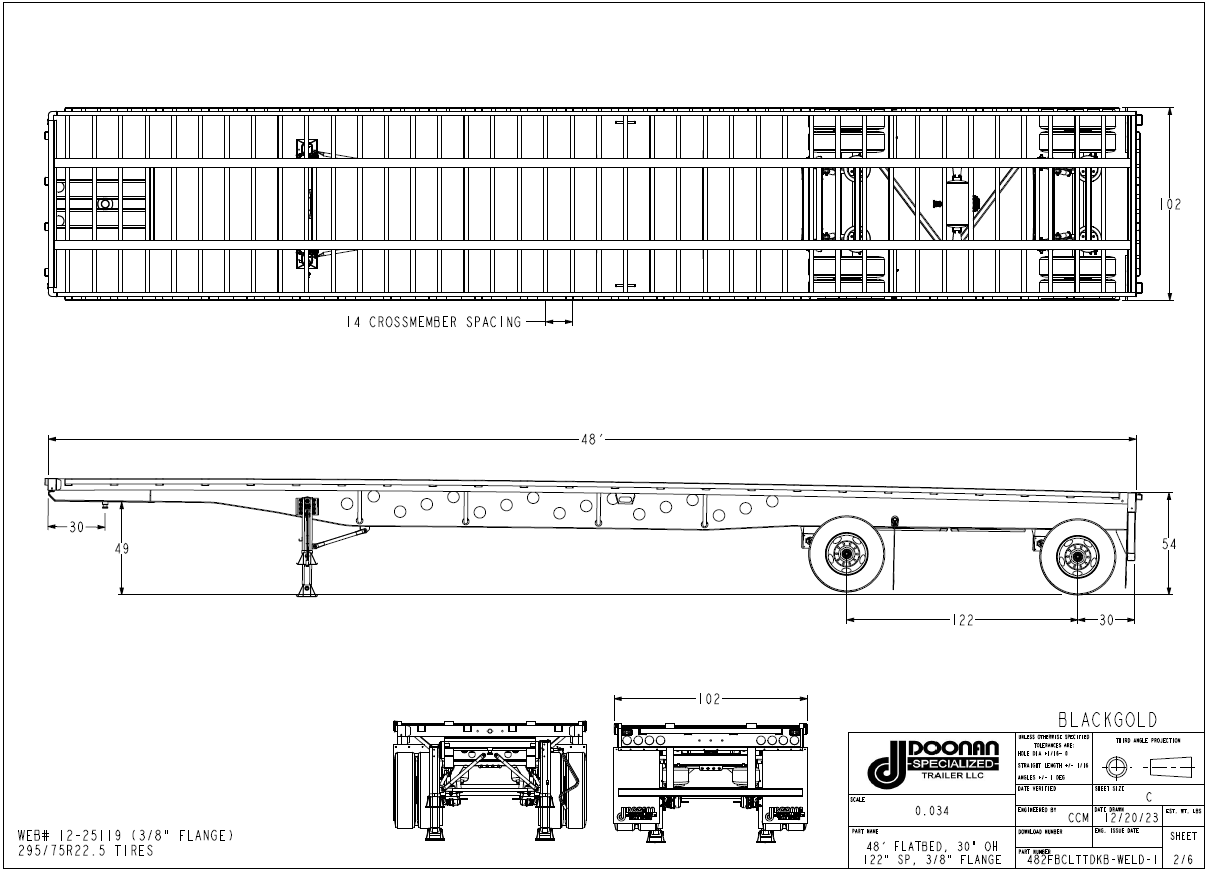

Model Number 482FBELTTDKB
Beam Rating 50,000 lbs in 10 feet
Overall Length 48’ 0”
Top Deck Length 0’ 0”
Rear Deck Length 48’ 0”
Width 102”
Rear Deck Height 54”
Fifth Wheel Height 49”
King Pin Setting 30”
Top Flange Thickness 3/8” x 5” minimum 130k grade material
Bottom Flange Thickness 3/8” x 5” minimum 130k grade material
Web Thickness 7 gauge web (minimum 100k grade web material)
Beams Two (2) 24” deep manufactured beams
Cross Sill Height 4” steel crossmembers on 14” centers
Side Rail 6” steel side rail with stake pockets on 24” centers and double pipe spools
Flooring 1 1/8” Apitong Wood Floor”
Paint Black – 2 part epoxy primer and urethane top coat applied after shot blasting
A
X
L
E
S

&

S
U
S
P
E
N
S
I
O
N
S
Suspension Type INTRAAX
Number of Axles 2 axles – 25,000 lb nominal with 77.5 tracking
Axle Spacing 122” – set to the rear
Sliding Axles No Sliding Axles
Axle Spindle Tapered Spindle
Lift Axle Kits None Standard
Hub & Drums Cast hub and cast drums
Bearing Lubricant Oil in hubs
Outer Wheels 22.5” x 8.25” Steel – Prepainted White
Inner Wheels 22.5” x 8.25” Steel – Prepainted White
Tires General HT 295/75R22.5
Spare Wheel & Tire None Standard
Tire Carrier None Standard
Tire Inflation System None Standard
Mudflaps One Pair Per Axle
A
I
R

&

L
I
G
H
T
S
ABS Wabco 4S/2M
Brakes Spring brakes with auto slack adjusters
Brake Dust Covers None Standard
Light Kit Standard Grote LED
Clearance Lights 3 Clearance Lights Per Side
Rear Lights 4-3-4 Standard LED Rear Lights
Conspicuity Tape Per NHTSA spec
Flag Holders Not Included
Certificate Holder Not Included
FHWA Inspection Not Included
M
I
S
C.
  Omit Front Stake Pockets
  Omit Rear Stake Pockets & Rubrail
  Auto Dump When Set Park Brakes
Weight   10,237 lbs

Hundreds of custom options available, see our Option List for more details.
