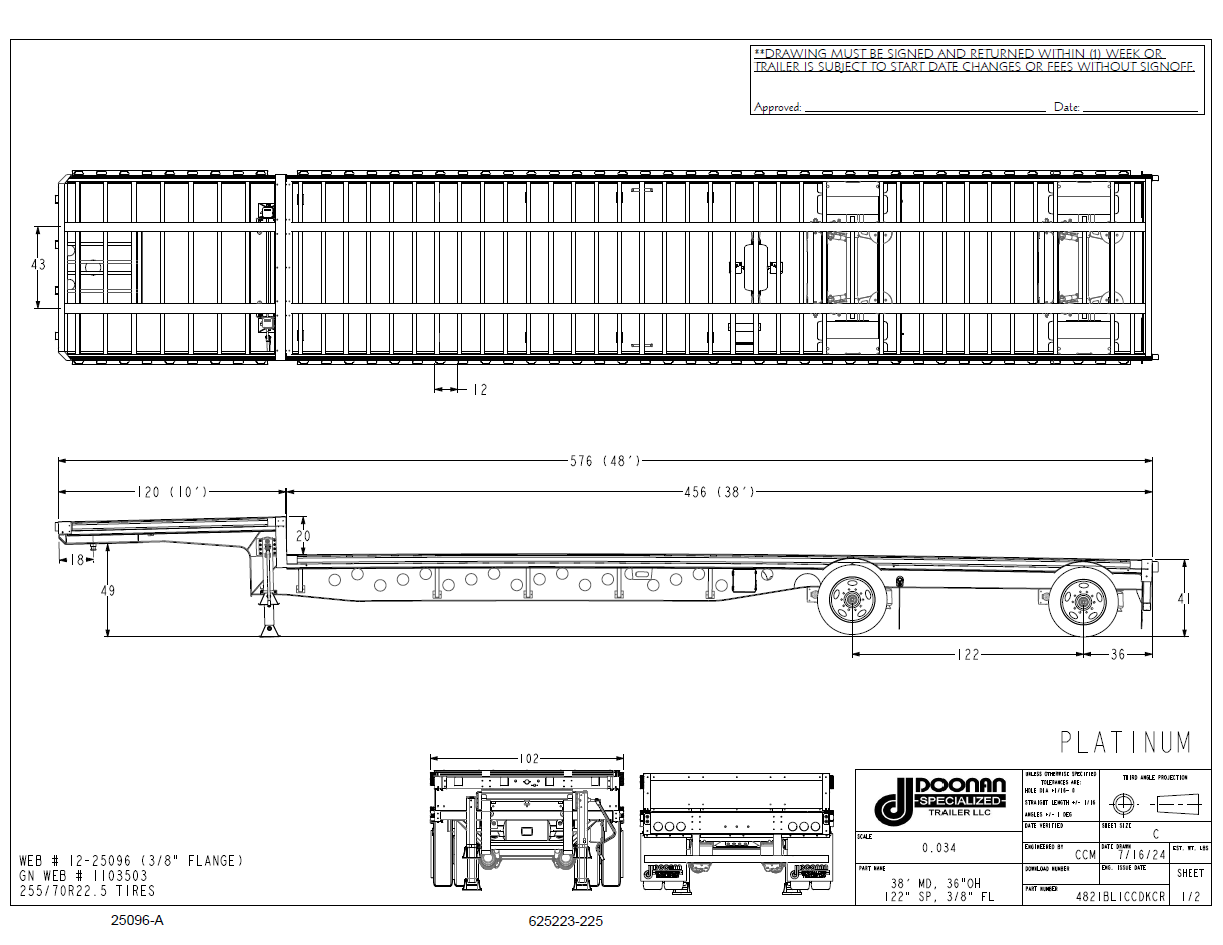

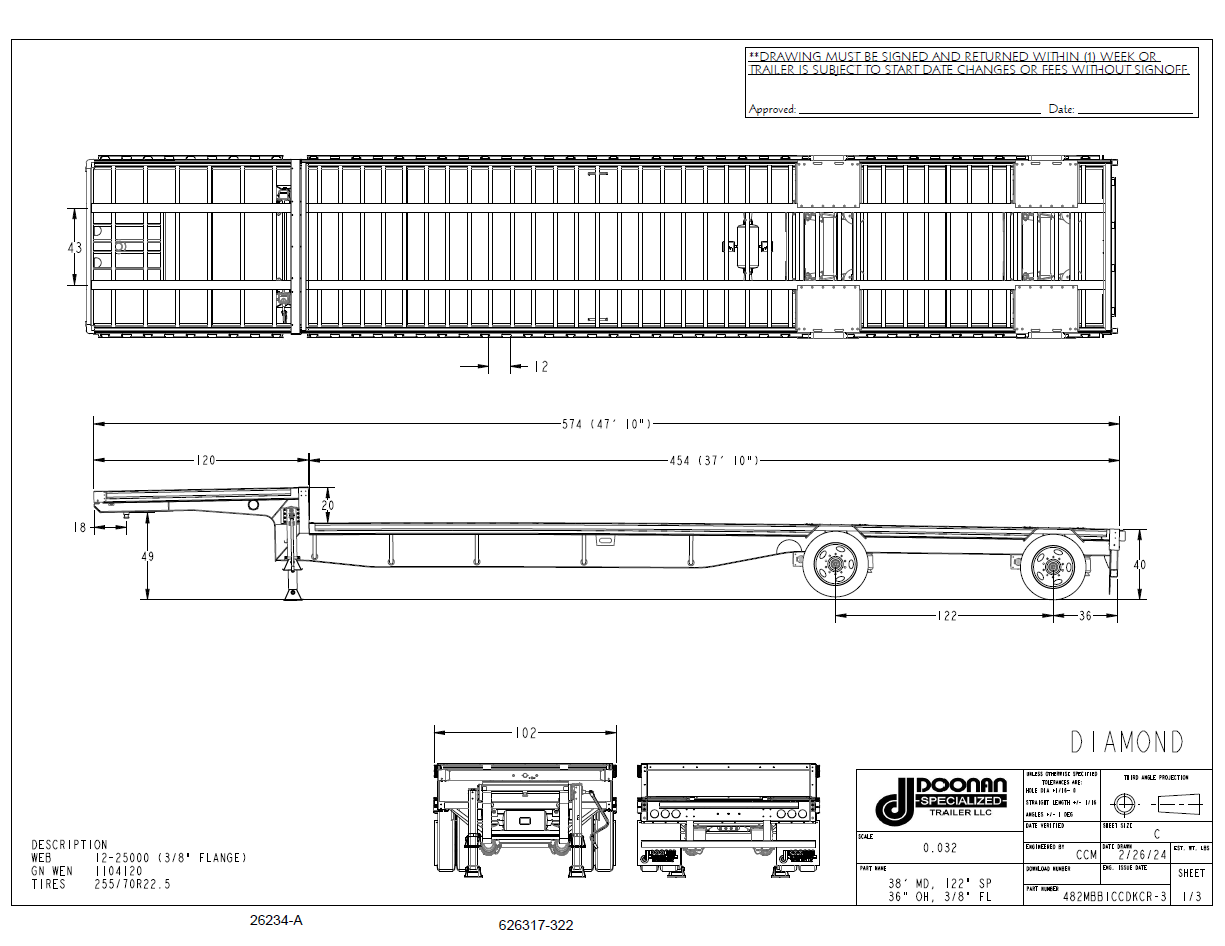

Doonan Combo Standard Drop Deck Specifications


SpecificationsPlatinumDiamond
S
T
R
U
C
T
U
R
E
Model Number 4821BOICCDKB 482MBCICCDKB
Beam Rating 50,000 lbs in 10 feet 50,000 lbs in 10 feet
Overall Length 48’ 0” 48’ 0”
Top Deck Length 10’ 0” 10’ 0”
Rear Deck Length 38’ 0” 38’ 0”
Width 102” 102”
Rear Deck Height 41” 40”
Fifth Wheel Height 49” 49”
King Pin Setting 18” 18”
Top Flange Thickness 3/8” x 5” minimum 130k grade material 3/8” x 5” minimum 130k grade material
Bottom Flange Thickness 3/8” x 5” minimum 130k grade material 3/8” x 5” minimum 130k grade material
Web Thickness 7 gauge web (minimum 100k grade web material) 7 gauge web (minimum 100k grade web material)
Beams Two (2) 24” deep manufactured beams Two (2) 24” deep manufactured beams
Front & Rear Plates Aluminum Steel
Fifth Wheel & Gooseneck Steel Steel
Cross Sill Height 5” alum. crossmembers on 16” centers 4” steel crossmembers on 14” centers
Side Rail 7.4” alum side rail with stake pockets on 24” centers, and dbl pipe spools, and integrated �J� hook track and integrated winch track 6” alum side rail with stake pockets on 24” centers, and dbl pipe spools, and integrated �J� hook track
Flooring Aluminum Floor W/ 3 Apitong Nailers 1 1/8” Apitong Wood Floor
Paint Black – 2 part epoxy primer and urethane top coat applied after shot blasting Black – 2 part epoxy primer and urethane top coat applied after shot blasting
A
X
L
E
S

&

S
U
S
P
E
N
S
I
O
N
S
Suspension Type INTRAAX HT250
Number of Axles 2 axles – 23,000 lb nominal with 77.5 tracking 2 axles – 25,000 lb nominal with 77.5 tracking
Axle Spacing 122” – set to the rear 122” – set to the rear
Sliding Axles No Sliding Axles No Sliding Axles
Axle Spindle Tapered Spindle Tapered Spindle
Lift Axle Kits None Standard None Standard
Hub &anol Drums Lightweight steel hub and fused drums Cast hub and cast drums
Bearing Lubricant Oil in hubs Oil in hubs
Outer Wheels 22.5” x 8.25” Aluminum – Milled 22.5” x 8.25” Steel – Prepainted White
Inner Wheels 22.5” x 8.25” Aluminum – Milled 22.5” x 8.25” Steel – Prepainted White
Tires General HT 255/70R22.5 General HT 255/70R22.5
Spare Wheel & Tire None Standard None Standard
Tire Carrier None Standard None Standard
Tire Inflation System None Standard None Standard
Mudflaps One Pair Per Axle One Pair Per Axle
A
I
R

&

L
I
G
H
T
S
ABS Wabco 4S/2M Wabco 4S/2M
Brakes Spring brakes with auto slack adjusters Spring brakes with auto slack adjusters
Brake Dust Covers None Standard None Standard
Light Kit Standard Grote LED Standard Grote LED
Clearance Lights 5 Clearance Lights Per Side 3 Clearance Lights Per Side
Rear Lights 3-3-3 Standard LED Rear Lights 4-3-4 Standard LED Rear Lights
Conspicuity Tape Per NHTSA spec Per NHTSA spec
Flag Holders Not Included Not Included
Certificate Holder Not Included Not Included
FHWA Inspection Not Included Not Included
M
I
S
C.
Omit Front Stake Pockets Omit Front Stake Pockets
Omit Rear Stake Pockets & Rubrail Omit Rear Stake Pockets & Rubrail
Beam Holes
Winch Track – Both Sides
Rubber Dock Bumpers
Weight 10,856 lbs. 10,547 lbs.

Hundreds of custom options available, see our Option List for more details.
