Doonan Titanium™ Standard Drop Deck Specifications

Chaparrall II Aluminum Drop Deck.png

Titanium Brochure Thumbnail.png Discover the new features STANDARD on the new Doonan Titanium™

Specifications
S
T
R
U
C
T
U
R
E
Model Number 482ABLICEQKBR
Beam Rating 60,000 lbs in 10 feet
Overall Length 48’ 0”
Top Deck Length 10’ 0”
Rear Deck Length 38’ 0”
Width 102”
Rear Deck Height 41”
Fifth Wheel Height 49”
King Pin Setting 18”
Top Flange Thickness 1” × 5” extruded aluminum top rail
Bottom Flange Thickness 1.05” × 6” extruded aluminum bottom rail
Web Thickness 0.380” web aluminum
Beams Two (2) 25” deep manufactured beams incorporating the

New HUCK BOLT BOBTAIL

Fifth Wheel & Gooseneck Steel
Cross Sill Height 5” alum. crossmembers on 12” centers
Side Rail 7.4” alum side rail with integrated “J” hook and winch track, and the

New CONTINUOUS CONTACT RUB RAIL (CCRR)

Flooring Aluminum Floor W/ 3 Apitong Nailers
Paint Aluminum Trailer: Susp & Axles are Undercoated, LG/FW painted Silver
A
X
L
E
S

&

S
U
S
P
E
N
S
I
O
N
S
Suspension Type INTRAAX
Number of Axles 2 axles – 23,000 lb nominal with 77.5” tracking
Axle Spacing 122” – set to the rear
Sliding Axles No Sliding Axles
Axle Spindle Tapered Spindle
Lift Axle Kits None Standard
Hub & Drums Lightweight steel hub and fused drums
Bearing Lubricant Synthetic Semi Fluid Grease in hubs
Outer Wheels 22.5” × 8.25” Aluminum – Milled
Inner Wheels 22.5” × 8.25” Aluminum – Milled
Tires General HT 255/70R22.5
Spare Wheel & Tire None Standard
Tire Carrier None Standard
Tire Inflation System None Standard
Mudflaps One Pair Per Axle
A
I
R

&

L
I
G
H
T
S
ABS Wabco 4S/2M
Brakes Spring brakes with auto slack adjusters
Brake Dust Covers None Standard
Light Kit Standard Grote LED
Clearance Lights 5 Clearance Lights Per Side
Rear Lights 3-3-3 Standard LED Rear Lights
Conspicuity Tape Per NHTSA spec
Flag Holders Not Included
Certificate Holder Not Included
FHWA Inspection Not Included
M
I
S
C.
Omit Front Stake Pockets
Omit Rear Stake Pockets & Rubrail
Manual Dock Dump Valve
Winch Track – Both Sides
Rubber Dock Bumpers
Weight 8,938 lbs

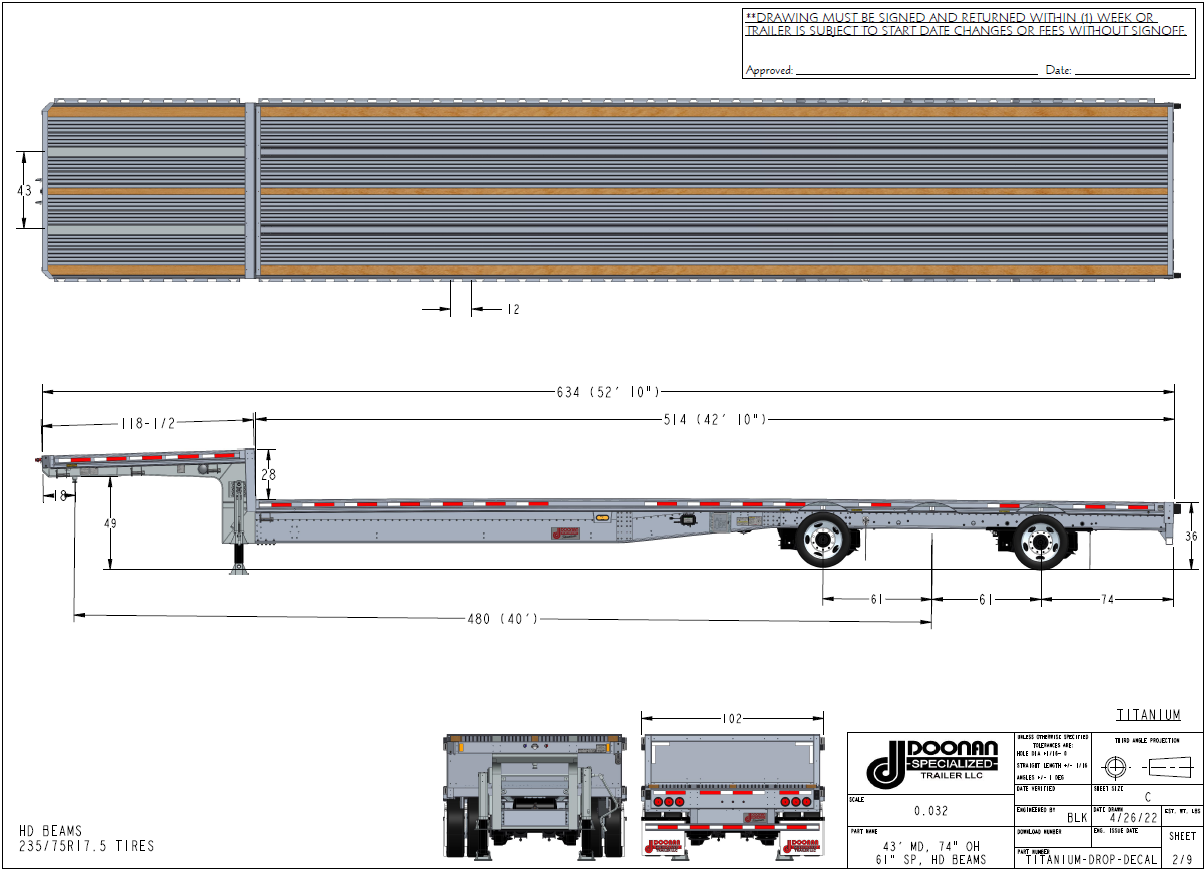

532ABLIDEQKBR Titanium Drop Deck Illustration.png
